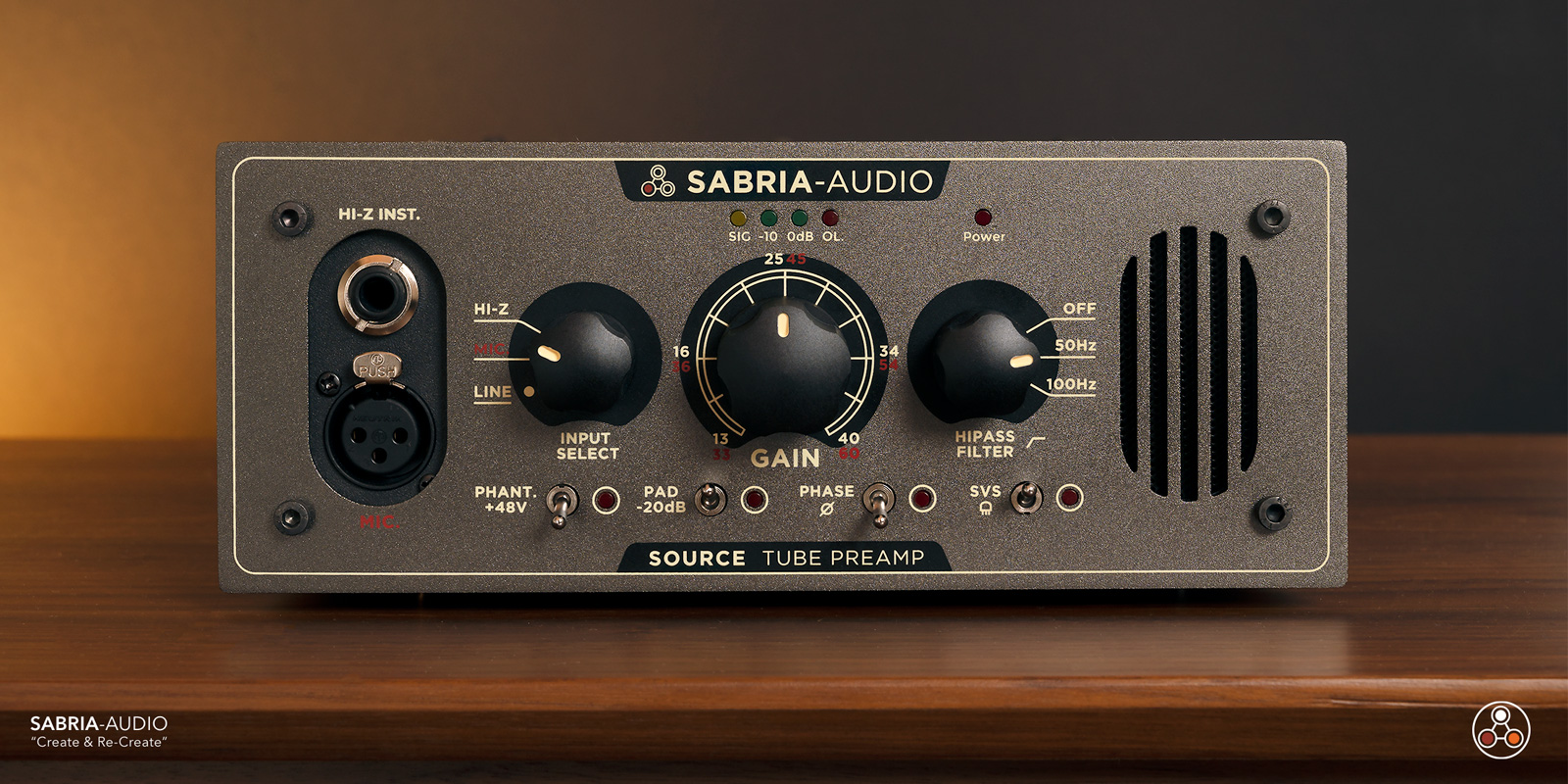

Source Tube Preamp
Source Tube Preamp | Mic | Hi-Z Inst | Line | DI Box | Svs
WARMTH & PRECISION
The Source Tube Preamp is a one-channel mic. pre / hi-Z instruments input, a Line level dedicated circuit, and a perfect DI Box with a Subtle Vintage Sound ® function will bring excellence in your audio productions and recordings. The original circuitry and the components choices are made to fit with all the professional requirements. All the aspects of sound, dynamics, headroom, thd, and transcients are fully respected, giving precision and presence to any input source. Check all the specifications below. Don’t miss the Source Studio Pack offer consisting of two channels for perfect stereo recordings.
Check our SOURCE STUDIO PACK offer| 15% Off by clicking here.Retail Price
990.00€ (Including tax)
FEATURES & FUNCTIONS

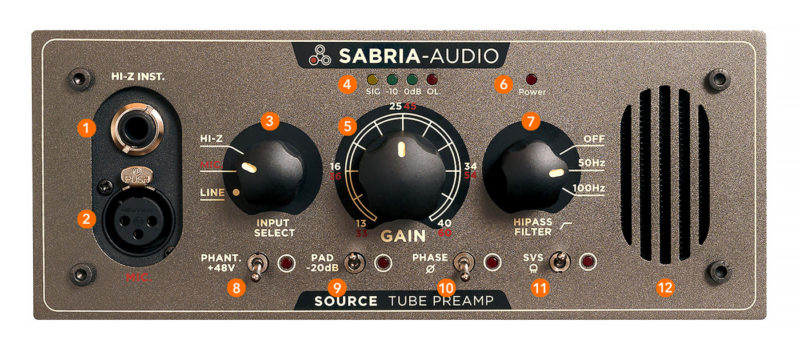

SOURCE TUBE PREAMP FRONT FACE
1 – Hi-Z Instrument Input | Asymetric 6,35mm jack | Neutrik connector
2 – Microphone Input | 4.2K Impedance | Neutrik connector
3 – Input Selector 3-pos switch | Mic – Hi-Z Inst. – Line
4 – Bargraph 4-leds level indicator | Optimal level with two lighted green leds. The red one is not an absolute limit. Due to the circuitry tolerance, you can push-up the level to the desired dynamics.
5 – Gain potentiometer with the scales (Hi-Z: 13dB to 40dB | Microphones: 33dB to 60dB.) This gain does not affect the line level.
6 – Power led indicator.
7 – Filter 3-pos switch | NC-50Hz-100Hz | Does not affect the Line Input.
8 – Phantom +48V power for condenser microphones.
9 – Pad -20dB switch | Works as an attenuator | Does not affect the Line Input.
10 – Phase Invert switch | 180° Phase inversion.
11 – SVS Switch ( Subtile Vintage Sound®) | Genuine function from Sabria-Audio | It’s an adapted & subtile harmonics enhancer.

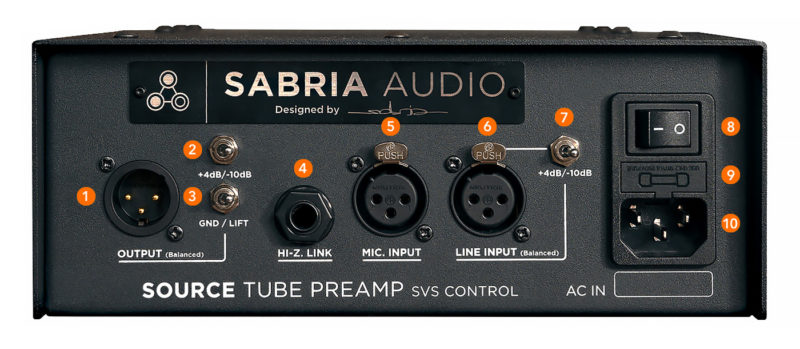

SOURCE TUBE PREAMP REAR FACE
1 – Main Output | Balanced 600 Ohms XLR | Neutrik connector
2 – Main Output Operating Level | -10dB/+4dB switch to concrete a coherent audio chain.
3 – Ground/ Lift Switch | Useful to avoid ground loops, above all in live conditions.
4 – Hi-Z Link Jack 6,35mm Neutrik connector | Parallel input of the front instrument input. Dedicated to instrument amps, tuner, etc.)
5 – Microphone Input (Alternative of the front one) | 4.2K Impedance | Neutrik connector | Neutrik connector | Connect the front OR the rear input.
6/7 – Line Input | Balanced XLR Neutrik Connector with its -10dB/+4dB operating level switch
8/9/10 – Power switch | Fuse | IEC Plug
SOUND & ELECTRONICS
The Source Tube Preamp is a state-of-the-art piece of engineering. It’s original electronic topography, with a push-pull tube mu-amplifier and output symmetry optimization. The choice of the highest quality components has been made without any compromise and the compacity of the printed circuit boards reduces the audio path to ensure the best treatment. The main principle of the Source Tube Preamp is to adquire all the audio sources with the largest bandwith thanks to dedicated very high-end opamps, to achieve the more accurate precision. Subsequently, the output stage with a Lundahl transformer (a “sur-mesure” model for the Source Tube preamp) and the Subtle Vintage Sound ( aka SVS – genuine Source Tube Preamp function to generate harmonics) brings an ultra musical touch. We are not talking about color or tone, we are talking about presence and musicality.
SPECIFICATIONS
– Voltages available | Europe – 230V | Us – 120V | Japan – 115V – Dimensions (mm): 335(D) x 222(W) x 88(H) – Weight: 3.7 kgs – Contains: Source Tube Preamp | Power cable – Optional accessories: Rackmount 19″ with P-Rack One & P-Rack Two – The Sabria-Audio® products are handbuilt in Europe. – Three-year-warranty.
