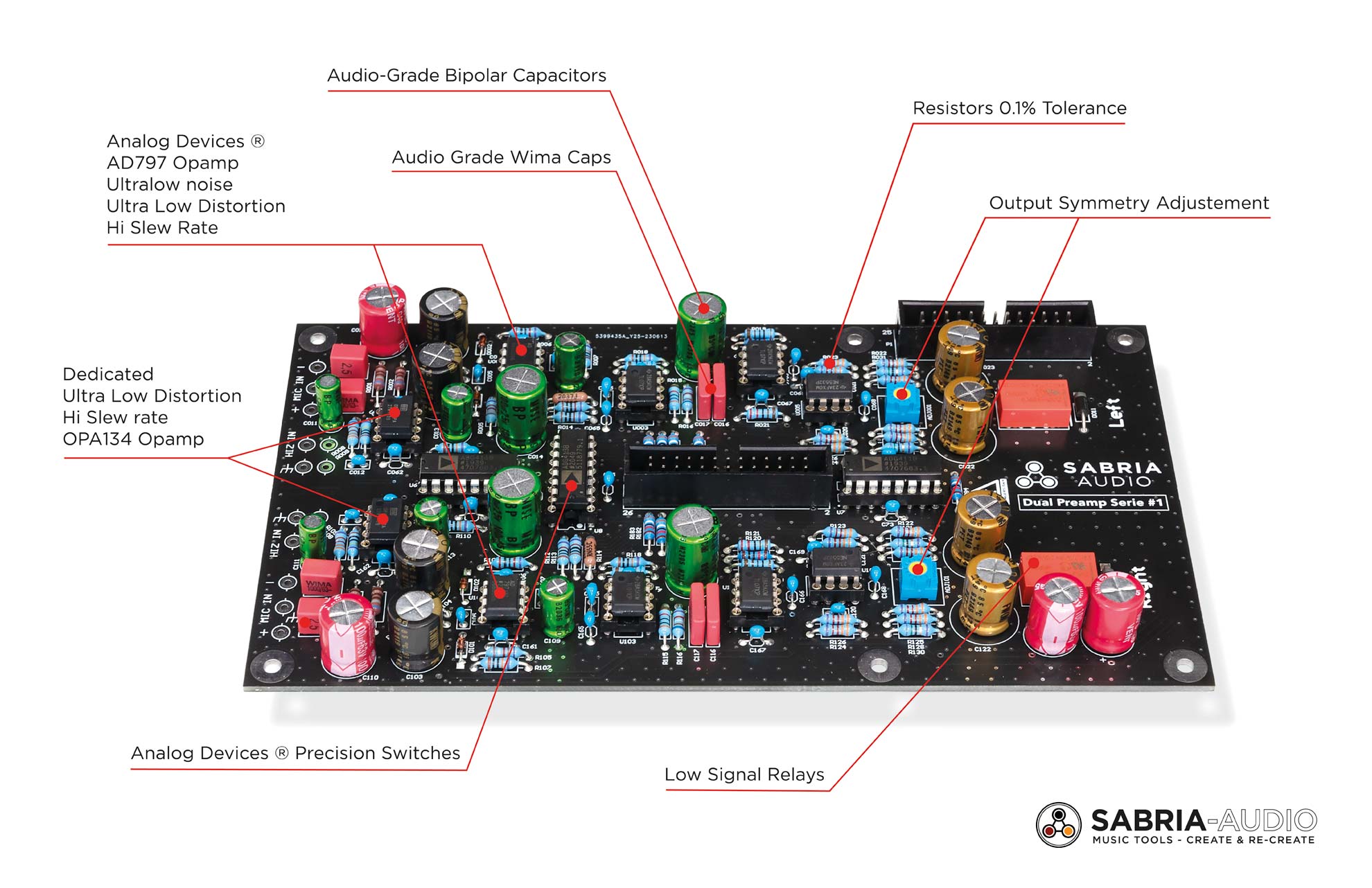

Dual Pre

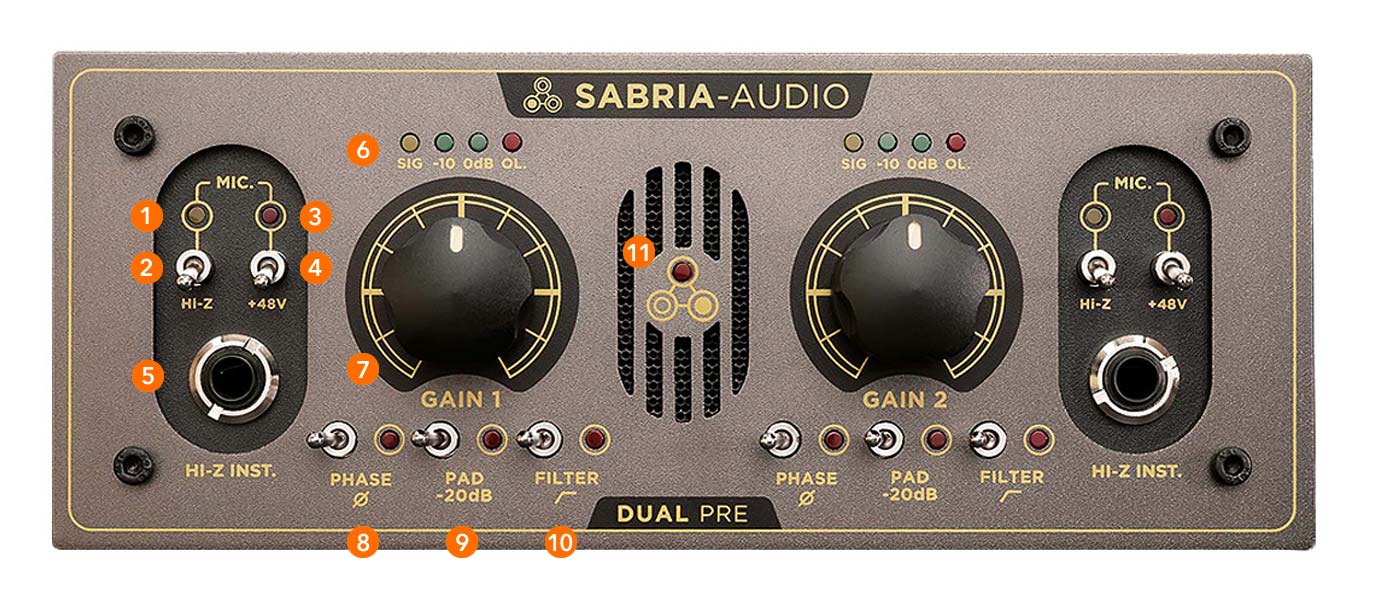

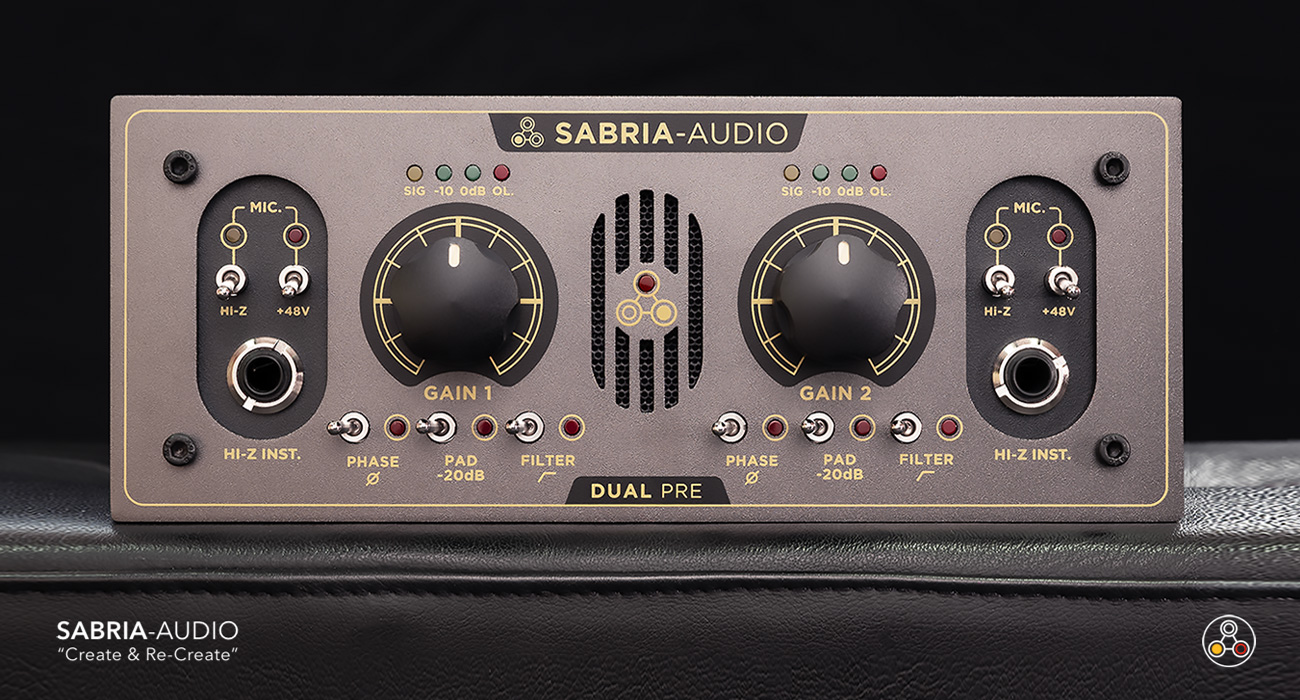

DUAL PRE FRONT FACE

Description of a Dual complete channel, The two channels being identical, here’s the description of the left one.
1 – Mic input select led
2 – Input Selector 2-pos switch | Mic – Hi-Z Inst.
3 – Phantom power led
4 – Input Selector 2-pos switch | Phantom +48V for condenser microphones.
5 – Hi-Z Instrument Input | Asymetric 6,35mm jack | Neutrik connector
6 – Bargraph 4-leds level indicator | Optimal level with two lighted green leds. The red one is not an absolute limit. Due to the circuitry tolerance, you can push-up the level to the desired dynamics.
7 – Gain potentiometer with the scales (Hi-Z: 13dB to 40dB | Microphones: 33dB to 60dB)
8 – Phase Invert switch | 180° Phase inversion
9 – Pad -20dB switch | Works as an attenuator.
10 – Filter 2-pos switch | NC-80Hz
11 – Power led indicator.

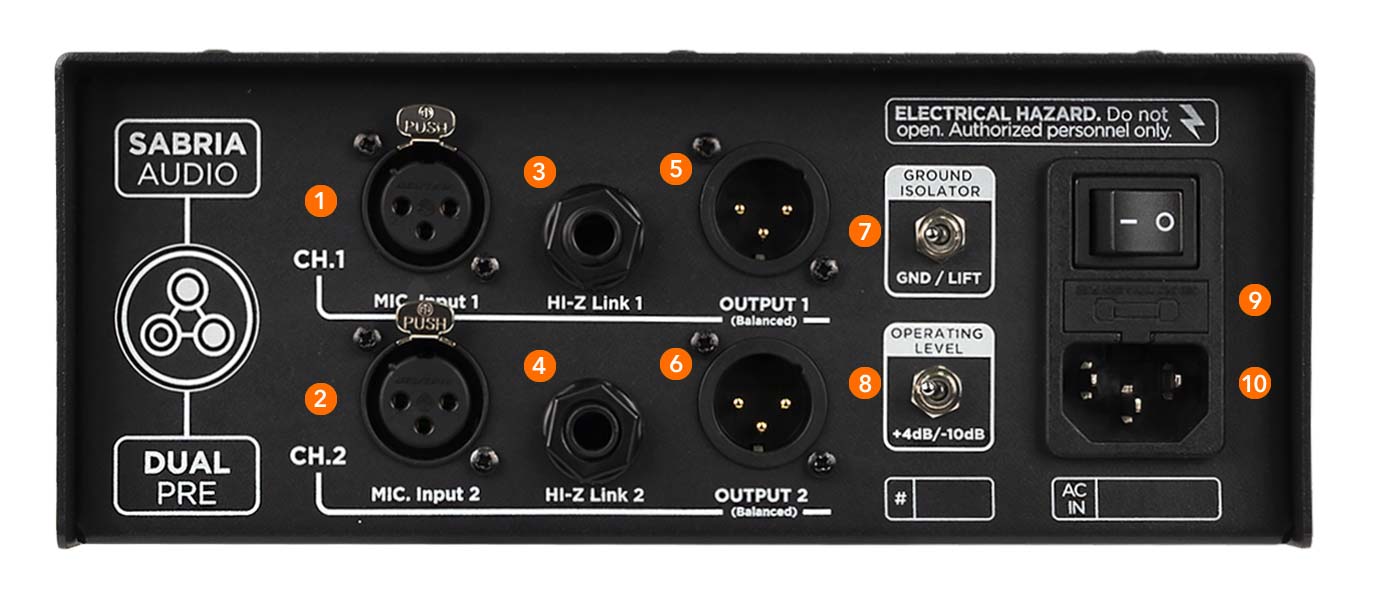

DUAL REAR FACE

1 – Microphone Left Input | 4.2K Impedance | Neutrik connector
2 – Microphone Left Input | 4.2K Impedance | Neutrik connector
3 – Hi-Z Left link Jack 6,35mm Neutrik connector | Parallel input of the front instrument input. Dedicated to instrument amps, tuner, etc.)
4 – Hi-Z Right link Jack 6,35mm Neutrik connector | Parallel input of the front instrument input. Dedicated to instrument amps, tuner, etc.)
5 – Main Output L | Balanced 600 Ohms XLR | Neutrik connector
6 – Main Output R | Balanced 600 Ohms XLR | Neutrik connector
7 – Ground/ Lift Switch | Useful to avoid ground loops, above all in live conditions.
8 – Operating level switch | -10dB/+4dB
9/10 – Fuse | IEC Plug
